## lunedì 26 novembre 2007

This is one of that tiny function that help you to save yourself a lot of time! I thank the list for the suggestion!

`library(gdata)?keepdata(women, cars)keep(cars)## To remove all objects except cars, run:## keep(cars, sure=TRUE)`

## martedì 16 ottobre 2007

### Duplicate a figure with R

The following code attempts to reproduce the Figure 3 (top) in Liao L, Noble WS.
Combining pairwise sequence similarity and support vector machines for detecting remote protein evolutionary and structural relationships. Journal of computational biology. 2003;10(6):857-68 using only the Base graphics system in R.
Data can be downloaded from here (if it doesn't work, use Google's cache).
I imported the file in a spreadsheet and then I copied & pasted it in R.

`jcb.scores = read.delim("clipboard")attach(jcb.scores)pdf("recomb_scores.pdf")par(las =1) # To have horizontal labels for axes 2 and 4plot(y~sort(SVM.pairwise.ROC, decreasing = TRUE), pch = 3, cex = 0.5,xlab = "AUC", ylab = "Number of families", axes = FALSE,xlim = c(0,1), ylim = c(0,60))lines(y~sort(SVM.pairwise.ROC, decreasing = TRUE), lty = 1)points(y~sort(FPS.ROC, decreasing = TRUE), pch = 4, cex = 0.5)lines(y~sort(FPS.ROC, decreasing = TRUE), lty = 2)points(y~sort(SVM.Fisher.ROC, decreasing = TRUE), pch = 8, cex = 0.5)lines(y~sort(SVM.Fisher.ROC, decreasing = TRUE), lty = 3)points(y~sort(SAM.ROC, decreasing = TRUE), pch = 0, cex = 0.5)lines(y~sort(SAM.ROC, decreasing = TRUE), lty = 4)points(y~sort(PSI.BLAST.ROC, decreasing = TRUE), pch = 15, cex = 0.5)lines(y~sort(PSI.BLAST.ROC, decreasing = TRUE), lty = 5)axis(1, at = seq(0,1,0.2), labels = c(0,0.2,0.4,0.6,0.8,1), tcl = 0.25, pos = 0) # tcl = 0.25 small ticks toward the curveaxis(2, at = c(0,10,20,30,40,50,60), labels=c(0,10,20,30,40,50,60), tcl= 0.25 , pos = 0)axis(2, at = c(0,10,20,30,40,60), tcl= 0.25,labels = F, pos = 0)axis(3, tick = T, tcl= 0.25, labels = F, pos = 60)axis(4, at = c(0,10,20,30,40,50), tcl= 0.25, labels = F, pos = 1)axis(4, at = c(0,10,20,30,40,60), tcl= 0.25, labels = F, pos = 1)# To locate the legend interactivelyxy.legend = locator(1)# right-justifying a set of labels: thanks to Uwe Liggestemp <- legend(xy.legend, legend = c("SVM-pairwise", "FPS","SVM-Fisher", "SAM","PSI-BLAST"), text.width = strwidth("SVM-pairwise"), xjust = 1, yjust = 1, lty = c(1,2,3,4,5), pch = c(3,4,8,0,15), bty = "n", cex = 0.8, title = "")dev.off()detach(jcb.scores)`

The original image: My version of the image (not exacly identical but...): ## venerdì 14 settembre 2007

### Plotting two or more overlapping density plots on the same graph

This post was updated.
See this thread from StackOverflow for other ways to solve this task.
``` plot.multi.dens <- function(s) { junk.x = NULL junk.y = NULL for(i in 1:length(s)) { junk.x = c(junk.x, density(s[[i]])\$x) junk.y = c(junk.y, density(s[[i]])\$y) } xr <- range(junk.x) yr <- range(junk.y) plot(density(s[]), xlim = xr, ylim = yr, main = "") for(i in 1:length(s)) { lines(density(s[[i]]), xlim = xr, ylim = yr, col = i) } } #usage: x = rnorm(1000,0,1) y = rnorm(1000,0,2) z = rnorm(1000,2,1.5) # the input of the following function MUST be a numeric list plot.multi.dens(list(x,y,z)) library(Hmisc) le <- largest.empty(x,y,.1,.1) legend(le,legend=c("x","y","z"), col=(1:3), lwd=2, lty = 1)``` ## giovedì 9 agosto 2007

### R package installation and administration

A short list of basic but useful commands for managing
the packages in R:
`# install a packageinstall.packages("ROCR")# visualize package versionpackage_version("pamr")# update a packageupdate.packages("Cairo")# remove a packageremove.packages("RGtk2")`

## venerdì 3 agosto 2007

### Sorting/ordering a data.frame according specific columns

`x = rnorm(20)y = sample(rep(1:2, each = 10))z = sample(rep(1:4, 5))data.df <- data.frame(values = x, labels.1 = y, labels.2 = z)print(data.df)# data ordered according to "labels.1" column # and then "labels.2" columnnams <- c("labels.1", "labels.2")data.df.sorted = data.df[do.call(order, data.df[nams]), ]print(data.df.sorted)`

## giovedì 2 agosto 2007

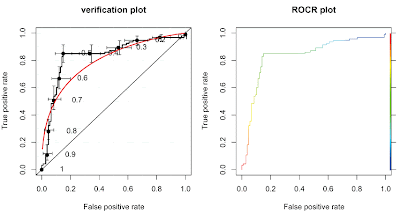

### Receiver Operating Characteristic (ROC) Curve in ROCR and verification packages

The following VERY basic code shows how to plot a simple ROC Curve both by means of ROCR package and by verification package.

```# it allows two different plots in the same frame
par(mfrow = c(1,2))
# plot a ROC curve for a single prediction run
# and color the curve according to cutoff.
library(ROCR)
data(ROCR.simple)
pred <- prediction(ROCR.simple\$predictions, ROCR.simple\$labels)
perf <- performance(pred,"tpr", "fpr")
plot(perf,colorize = TRUE)
# plot a ROC curve for a single prediction run
# with CI by bootstrapping and fitted curve
library(verification)
roc.plot(ROCR.simple\$labels,ROCR.simple\$predictions, xlab = "False positive rate",
ylab = "True positive rate", main = NULL, CI = T, n.boot = 100, plot = "both", binormal = TRUE)``` ## lunedì 30 luglio 2007

### screen - an other VERY useful Unix tool

from R News Vol. 7/1 April 2007 (http://cran.r-project.org/doc/Rnews/Rnews_2007-1.pdf):
If you need to run R code that executes for long periods of time upon remote machines, this amazing unix tool would became your best friend!
screen is a so-called terminal multiplexor, which allows us to create, shuffle, share, and suspend command line sessions within one window. It provides protection against disconnections and the flexibility to retrieve command line sessions remotely.

Starting using this utility is easy like ABC:

2. Run screen
3. Run R and the long calculation
4. Detach screen (Ctrl-a, Ctrl-d)
5. Logout

The R session continues working in the background, contained within the screen session. If we want to revisit the session to check its progress, then we:

1. Log in remotely via secure shell
2. Start screen -r, which recalls the unattached session
3. Examine how your calculation/script is performing
4. Detach the screen session, (Ctrl-a, Ctrl-d)
5. Log out

This procedure can be used, clearly, for invoking whatever unix program/command you need to use; it is sufficient to substitute the R invoking command with your invoking command line program(for example python).

As usual in the shell-space, invoking man (man screen in this case) will provide all sort of information you need to know about the tool.

## lunedì 16 luglio 2007

From the list:
When I update R the following has worked for me (Windows XP)
1. Install the new version to a new directory (say C:\Program Files\R\R-2.5.1).
2. Rename the new library subdirectory to library2.
3. Copy the entire contents of the old library subdirectory (say
C:\Program Files\R\R-2.4.0\library\ to the new R root to create
C:\Program Files\R\R-2.5.1\library\ .
4. Copy the contents of library2 to library to update your basic library.
5. Now start your new version of R and update packages from the GUI or
from the R console. (You may need to firs check Rprofile .site to
ensure that no packages have been loaded)
6. On occasion I have got warning messages when I tried to load
packages after this procedure. This has been cleared by running
update.packages(checkBuilt = TRUE)
This checks that your packages have been built with the latest
version. When I do this I agree to install all available updates.
7. You may wish to copy various autoloads etc from your old
Rprofile.site to your new Rprofile.site. I understand that there are
some compatibility problems with 2.5.1 and SciViews so be careful.

## mercoledì 20 giugno 2007

### String manipulation, insert delim

From the list, as usual:

I want to be able to insert delimiters, say commas, into a string
of characters at uneven intervals such that:

`foo<-c("haveaniceday")# my string of characterbar<-c(4,1,4,3) # my vector of uneven intervalsmy.fun(foo,bar) # some function that places delimiters appropriatelyhave,a,nice,day # what the function would ideally return`

1)

`paste(read.fwf(textConnection(foo), bar, as.is = TRUE), collapse = ",") "have,a,nice,day"`

2)

`my.function <- function(foo, bar){# construct a matrix with start/end character positionsstart <- head(cumsum(c(1, bar)), -1) # delete last onesel <- cbind(start=start,end=start + bar -1)strings <- apply(sel, 1, function(x) substr(foo, x, x))paste(strings, collapse=',')}my.function(foo, bar) "have,a,nice,day"`

## venerdì 8 giugno 2007

### Back to back historgram

`library(Hmisc)age <- rnorm(1000,50,10)sex <- sample(c('female','male'),1000,TRUE)out <- histbackback(split(age, sex), probability=TRUE, xlim=c(-.06,.06), main = 'Back to Back Histogram')#! just adding colorbarplot(-out\$left, col="red" , horiz=TRUE, space=0, add=TRUE, axes=FALSE)barplot(out\$right, col="blue", horiz=TRUE, space=0, add=TRUE, axes=FALSE)` ## lunedì 4 giugno 2007

### How do you get the most common row from a matrix?

If I have a matrix like this:

`array(1:3,dim=c(4,5)) [,1] [,2] [,3] [,4] [,5] [1,] 1 2 3 1 2 [2,] 2 3 1 2 3 [3,] 3 1 2 3 1 [4,] 1 2 3 1 2 `

in which rows 1 and 4 are similar, I want to find that vector c(1,2,3,1,2).

`library(cluster)x <- array(1:3,dim=c(4,5))dissim <- as.matrix(daisy(as.data.frame(x)))dissim[!upper.tri(dissim)] <- NAunique(x[which(dissim == 0, arr.ind=TRUE), ])`

or

`count <- table(apply(x, 1, paste, collapse=" "))count[which.max(count)] `

## venerdì 1 giugno 2007

### R number output format

I'd like to save the number 0.0000012 to a file just as it appears:
```?formatC
formatC(.000000012, format='fg')
 "0.000000012"```
also
```?sprintf
sprintf("%.10f", 0.0000000012)
 "0.0000000012"```
or
```format(.0000012, scientific=FALSE)
 "0.0000012"```

## martedì 29 maggio 2007

### Detecting outliers through boxplots of the features

This function detects univariate outliers simultaneously using boxplots
of the features:

`require(dprep)data(diabetes)outbox(diabetes,nclass=1)` ## giovedì 24 maggio 2007

### Selecting “contrasting” colors

From the R-list (as usual):

What I want to be able to do is to place text on a background of arbitrary
(but known RGB) colour so that the text is legible.
I guess that this is better described as a "contrasting" than a "complementary" colour.
Since luminance contrasts are necessary and sufficient for readable text,
you could use white for dark colors and black for light colors.
Luminance is roughly proportional to 0.2*(R^2.4)+0.6*(G^2.4),
suggesting something like

`lightdark <-function (color){ rgb <- col2rgb(color)/255 L <- c(0.2, 0.6, 0) %*% rgb ifelse(L >= 0.2, "#000060", "#FFFFA0")}`

This uses a pale yellow for dark backgrounds and a dark blue for light
backgrounds, and it seems to work reasonably well.

## mercoledì 23 maggio 2007

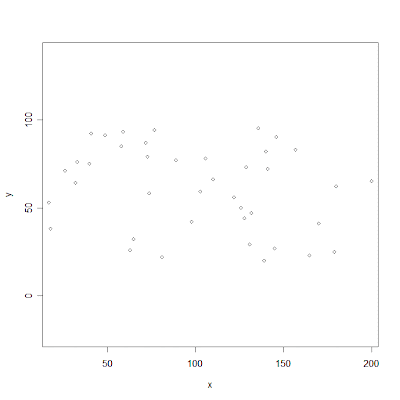

### Scatter plot with axes drawn on the same scale

I'd like to produce some scatter plots where N units on the X axis are > equal to N units on the Y axis (as measured with a ruler, on screen or paper).
`x <- sample(10:200,40)y <- sample(20:100,40)windows(width = max(x),height = max(y))plot(x,y)# try:plot(x, y, asp = 1)# or, better:library(MASS)eqscplot(x,y)#orlibrary(lattice)xyplot(y ~ x, aspect = "iso")` ## martedì 22 maggio 2007

### How to draw a plot with two Y axises and one X axis

`plot(1:10)par("usr")#  0.64 10.36 0.64 10.36# Now resetting y axis' usr coordinates:par(usr=c(par("usr")[1:2], 101, 105))points(1:5, 105:101, col="red")axis(4)` ## lunedì 21 maggio 2007

### Conversion of column matrix into a vector without duplicate

`A = matrix(c("a","b","c","d","e","u","v",rep("x",3)),5,2,byrow=F)unique(A[, 2])`

## sabato 19 maggio 2007

### Running R Programs on clusters

1. Syntax for running R programs in BATCH mode from the command-line

`\$ R CMD BATCH [options] my_script.R [outfile]\$ nohup nice -n 14 R CMD BATCH myRfile.R &`

The output file lists the commands from the script file and their outputs. If no outfile is specified, the name used is that of 'infile' and '.Rout' is appended to outfile. To stop all the usual R command line information from being written to the outfile, add this as first line to my_script.R file: 'options(echo=FALSE)'. If the command is run like this 'R CMD BATCH --no-save my_script.R', then nothing will be saved in the .Rdata file which can get often very large. More on this can be found on the help pages: '\$ R CMD BATCH --help' or '> ?BATCH'.

2. Submitting R script to Linux cluster via Torque Create the following shell script 'my_script.sh'

`###################################!/bin/shcd \$PBS_O_WORKDIRR CMD BATCH --no-save my_script.R##################################`

This script doesn't need to have executable permissons. Use the following 'qsub' command to send this shell script to the Linux cluster from the directory where the R script 'my_script.R' is located. To utilize several CPUs on the Linux cluster, one can divide the input data into several smaller subsets and execute for each subset a separate process from a dedicated directory.

`\$ qsub my_script.sh`

## giovedì 17 maggio 2007

### Quick and dirty function for descriptive statistics

`desc <- function(mydata) {require(e1071)quantls <- quantile(x=mydata, probs=seq(from=0, to=1, by=0.25))themean <- mean(mydata)thesd <- sd(mydata)kurt <- kurtosis(mydata)skew <- skewness(mydata)retlist <- list(Quantiles=quantls, Mean=themean,StandDev=thesd,Skewness=skew, Kurtosis=kurt)return(retlist)}# exampleexampledata <- rnorm(10000)summary(exampledata)desc(exampledata)`

## mercoledì 16 maggio 2007

### How can I turn a string into a variable?

If you have

`varname <- c("a", "b", "d")`

you can do

`get(varname) + 2`

for a + 2

or

`assign(varname, 2 + 2)`

for a <- 2 + 2

or

`eval(substitute(lm(y ~ x + variable), list(variable = as.name(varname))`

for lm(y ~ x + a)

At least in the first two cases it is often easier to just use a list, and then you can easily index it by name

`vars <- list(a = 1:10, b = rnorm(100), d = LETTERS) vars[["a"]]`

without any of this messing about.

## martedì 15 maggio 2007

### Large Matrix into a vector

```mx <- matrix(rnorm(100,1:100),10,10)
vec <- c(mx)```
or
`vec <- c(as.matrix(mx))`
or
`dim(mx) <- NULL`

## lunedì 14 maggio 2007

### Comparing two matrices, row by row

`ar1 <- array(data=c(1:16),dim=c(4,4))ar2 <- array(data=c(1,2,3,3,5:16),dim=c(4,4))z<-ar1==ar2ar1[,1] [,2] [,3] [,4][1,] 1 5 9 13[2,] 2 6 10 14[3,] 3 7 11 15[4,] 4 8 12 16ar2[,1] [,2] [,3] [,4][1,] 1 5 9 13[2,] 2 6 10 14[3,] 3 7 11 15[4,] 3 8 12 16z[,1] [,2] [,3] [,4][1,] TRUE TRUE TRUE TRUE[2,] TRUE TRUE TRUE TRUE[3,] TRUE TRUE TRUE TRUE[4,] FALSE TRUE TRUE TRUEwhich(z==FALSE) 4`

Or

`apply(ar1==ar2,1,all)`

## venerdì 11 maggio 2007

### Density curve over a histogram

This post was updated.

```x <- rnorm(1000)
hist(x, freq = FALSE, col = "grey")
curve(dnorm, col = 2, add = TRUE)
``` This thread (specifically the Ted Harding answer) from the r-help-list augments the usefulness of this simple tip.

This kind of plots cab be easily produced using the lessR package.

For example, from ?color.density:

```library(lessR)
# generate 100 random normal data values
y <- rnorm(100)
# normal curve and general density curves superimposed over histogram
# all defaults
color.density(y)
```

## giovedì 10 maggio 2007

### Barplots of two sets

`x <- c(0.0001, 0.0059, 0.0855, 0.9082)y <- c(0.54, 0.813, 0.379, 0.35)# create a two row matrix with x and yheight <- rbind(x, y)# Use height and set 'beside = TRUE' to get pairs# save the bar midpoints in 'mp'# Set the bar pair labels to A:Dmp <- barplot(height, beside = TRUE,ylim = c(0, 1), names.arg = LETTERS[1:4])# Nel caso generale, i.e., che si usa di# solito (height MUST be a matrix)mp <- barplot(height, beside = TRUE)# Draw the bar values above the barstext(mp, height, labels = format(height, 4),pos = 3, cex = .75)` ## martedì 8 maggio 2007

### Fill a matrix with vectors of different lengths

`v <- c(1,1,2,3,4,6)binc <- function(x){ l <- sum(x)+1 y <- c(1,rep(0,l-1)) for (i in x) y <- y+c(rep(0,i),y)[1:l] }out <- lapply(1:length(v), function(i) binc(v[1:i]))nout <- max(sapply(out, length))sapply(out, function(x) c(x, rep(0, nout - length(x))))`

## lunedì 7 maggio 2007

### Make many barplot into one plot

```# I have 4 tables like this:
satu <- array(c(5,15,20,68,29,54,84,119), dim=c(2,4), dimnames=list(c("Negative", "Positive"), c("Black", "Brown", "Red", "Blond")))
dua <- array(c(50,105,30,8,29,25,84,9), dim=c(2,4), dimnames=list(c("Negative", "Positive"), c("Black", "Brown", "Red", "Blond")))
tiga <- array(c(9,16,26,68,12,4,84,12), dim=c(2,4), dimnames=list(c("Negative", "Positive"), c("Black", "Brown", "Red", "Blond")))
empat <- array(c(25,13,50,78,19,34,84,101), dim=c(2,4), dimnames=list(c("Negative", "Positive"), c("Black", "Brown", "Red", "Blond")))
# rbind() the tables together
TAB <- rbind(satu, dua, tiga, empat)
# Do the barplot and save the bar midpoints
mp <- barplot(TAB, beside = TRUE, axisnames = FALSE)
# Add the individual bar labels
mtext(1, at = mp, text = c("N", "P"),
line = 0, cex = 0.5)
# Get the midpoints of each sequential pair of bars
# within each of the four groups
at <- t(sapply(seq(1, nrow(TAB), by = 2),
function(x) colMeans(mp[c(x, x+1), ])))
# Add the group labels for each pair
mtext(1, at = at, text = rep(c("satu", "dua", "tiga", "empat"), 4),
line = 1, cex = 0.75)
# Add the color labels for each group
mtext(1, at = colMeans(mp), text = c("Black", "Brown", "Red", "Blond"), line = 2)```
` `

## domenica 6 maggio 2007

### How to clear screen in R (Windows)

This tip (taken from this old thread) does work only under Windows:

```cls <- function() {
require(rcom)
wsh <- comCreateObject("Wscript.Shell")
comInvoke(wsh, "SendKeys", "\014")
invisible(wsh)
}
cls()```
or
```# An R function to clear the screen on RGui:
cls <- function() {
if (.Platform\$GUI != "Rgui")
return(invisible(FALSE))
if (!require(rcom, quietly = TRUE)) # Not shown any way!
stop("Package rcom is required for 'cls()'")
wsh <- comCreateObject("Wscript.Shell")
if (is.null(wsh)) {
return(invisible(FALSE))
} else {
comInvoke(wsh, "SendKeys", "\014")
return(invisible(TRUE))
}
}
cls()```

See this StackOverflow Question for other solutions.

## venerdì 4 maggio 2007

### Fill a matrix with vectors of different lengths

`V <- c(1,1,2,3,4,6)binc <- function(x){     l <- sum(x)+1     y <- c(1,rep(0,l-1))     for (i in x) y <- y+c(rep(0,i),y)[1:l]}`
`out <- lapply(1:length(v), function(i) binc(v[1:i]))nout <- max(sapply(out, length))sapply(out, function(x) c(x, rep(0, nout - length(x))))`

## giovedì 3 maggio 2007

### Rotating a distribution plot by 90 degrees

`x <- c( rnorm(50,10,2), rnorm(30,20,2) )y <- 2+3*x + rnorm(80)d.x <- density(x)d.y <- density(y)layout( matrix( c(0,2,2,1,3,3,1,3,3),ncol=3) )plot(d.x\$x, d.x\$y, xlim=range(x), type='l')plot(d.y\$y, d.y\$x, ylim=range(y), xlim=rev(range(d.y\$y)), type='l')plot(x,y, xlim=range(x), ylim=range(y) )` ## mercoledì 2 maggio 2007

### ls() improved!

This marvelous little function shows all objects in the current workspace
by mode, class and 'size'! Thanks to Bendix Carstensen!

`lls <- function (pos = 1, pat = ""){ dimx <- function(dd) if (is.null(dim(dd))) length(dd) else dim(dd) lll <- ls(pos = pos, pat = pat) cat(formatC("mode", 1, 15), formatC("class", 1, 18), formatC("name",1, max(nchar(lll)) + 1), "size\n-----------------------------------------------------------------\n") if (length(lll) > 0) { for (i in 1:length(lll)) { cat(formatC(eval(parse(t = paste("mode(", lll[i], ")"))), 1, 15), formatC(paste(eval(parse(t = paste("class(", lll[i], ")"))), collapse = " "), 1, 18), formatC(lll[i], 1, max(nchar(lll)) + 1), " ", eval(parse(t = paste("dimx(", lll[i], ")"))), "\n") } }}`

## venerdì 27 aprile 2007

### What's the best way to upgrade R on Windows©?

Copied and pasted from R for Windows FAQ - Version for R-2.5.0 - FAQ 2.8:

That's a matter of taste. For most people the best thing to do is to uninstall R (see the previous Q), install the new version, copy any installed packages to the library folder in the new installation, run `update.packages()` in the new R (`Update packages...' from the Packages menu, if you prefer) and then delete anything left of the old installation. Different versions of R are quite deliberately installed in parallel folders so you can keep old versions around if you wish.

Upgrading from R 1.x.y to R 2.x.y is special as all the packages need to be reinstalled. Rather than copy them across, make a note of their names and re-install them from CRAN.

## giovedì 26 aprile 2007

### How to Superimpose Histograms

Function inspired by the code of Martin Maechler found on the R-List at http://tolstoy.newcastle.edu.au/R/help/06/06/30059.html
```superhist2pdf <- function(x, filename = "super_histograms.pdf",
dev = "pdf", title = "Superimposed Histograms", nbreaks ="Sturges") {
junk = NULL
grouping = NULL
for(i in 1:length(x)) {
junk = c(junk,x[[i]])
grouping <- c(grouping, rep(i,length(x[[i]]))) }
grouping <- factor(grouping)
n.gr <- length(table(grouping))
xr <- range(junk)
histL <- tapply(junk, grouping, hist, breaks=nbreaks, plot = FALSE)
maxC <- max(sapply(lapply(histL, "[[", "counts"), max))
if(dev == "pdf") { pdf(filename, version = "1.4") } else{}
if((TC <- transparent.cols <- .Device %in% c("pdf", "png"))) {
cols <- hcl(h = seq(30, by=360 / n.gr, length = n.gr), l = 65, alpha = 0.5) }
else {
h.den <- c(10, 15, 20)
h.ang <- c(45, 15, -30) }
if(TC) {
plot(histL[], xlim = xr, ylim= c(0, maxC), col = cols, xlab = "x", main = title) }
else { plot(histL[], xlim = xr, ylim= c(0, maxC), density = h.den, angle = h.ang, xlab = "x") }
if(!transparent.cols) {
for(j in 2:n.gr) plot(histL[[j]], add = TRUE, density = h.den[j], angle = h.ang[j]) } else {
for(j in 2:n.gr) plot(histL[[j]], add = TRUE, col = cols[j]) }
invisible()
if( dev == "pdf") {
dev.off() }
}
```
```# How to use the function:
d1 = rnorm(1:100)
d2 = rnorm(1:100) + 4
# the input object MUST be a list!
l1 = list(d1,d2)
superhist2pdf(l1, nbreaks="Sturges")``` ## martedì 24 aprile 2007

### Plotting multiple smooth lines on the same graph

`d1 <- cbind(rnorm(100), rnorm(100,3,1))d2 <- cbind(rnorm(100), rnorm(100,1,1))plot(d1[,1], d1[,2], xlim=range(c(d1[,1], d2[,1])), ylim=range(c(d1[,2], d2[,2])), col="blue", xlab="X", ylab="Y")points(d2[,1], d2[,2], col="red")points(loess.smooth(d1[,1], d1[,2]), type="l", col="blue")points(loess.smooth(d2[,1], d2[,2]), type="l", col="red")` ## lunedì 23 aprile 2007

### How to convert the lower triangle of a matrix to a symmetric matrix

This post was updated.

## venerdì 20 aprile 2007

### How to join two arrays using their column names intersection

`ar1 <- array(data = c(1:16), dim = c(4,4))ar2 <- array(data = c(1:16), dim = c(4,4))colnames(ar1) <- c("A","B","D","E")colnames(ar2) <- c("C","A","E","B")# get the common names between the matricessame <- intersect(colnames(ar1), colnames(ar2))# join them togetherrbind(ar1[,same], ar2[,same])`

## giovedì 19 aprile 2007

### Highlight overlapping area between two curves

This post was updated thanks to Blaž Triglav contribution.
```p <- seq(0.2,1.4,0.01) x1 <- dnorm(p, 0.70, 0.12) x2 <- dnorm(p, 0.90, 0.12)  plot(range(p), range(x1,x2), type = "n")  lines(p, x1, col = "red", lwd = 4, lty = 2)  lines(p, x2, col = "blue", lwd = 4) polygon(c(p,p), c(pmin(x1,x2),0), col = "grey")```
` Below an advanced example (Thanks to Blaž):`
``````p <- seq(54,71,0.1)
x1 <- dnorm(p, 60, 1.5)
x2 <- dnorm(p, 65, 1.5)
par(mar=c(5.5, 4, 0.5, 0.5))
plot(range(p), range(x1,x2), type = "n", xlab="", ylab="", axes=FALSE)
box()
mtext(expression(bar(y)), side=1, line=1, adj=1.0, cex=2, col="black")
mtext("f"~(bar(y)), at=0.265, side=2, line=0.5, adj=1.0, las=2.0, cex=2, col="black")
axis(1, at=60, lab=mu[H]~"=60", cex.axis=1.5, pos=-0.0165, tck=0.02)
axis(1, at=65, lab=mu[H]~"=65", cex.axis=1.5, pos=-0.0165, tck=0.02)
axis(1, at=63.489, lab=y[k][","][zg]~"=63,489", pos=-0.035, tck=0.2)
axis(1, at=63.489, lab="", pos=-0.035, tck=-0.02)
lines(p, x1, col = "black")
lines(p, x2, col = "black")
line3 <- 63.5
polygon(c(line3, p[p<=line3], line3), c(0,x2[p<=line3],0), col = "grey23")
lines(p, x1, col = "black")
line <- 63.489
line1 <- 60
line2 <- 65
abline(v=line, col="black", lwd=1.5, lty = "dashed")
abline(v=line1, col="black", lwd=0.3, lty = "dashed")
abline(v=line2, col="black", lwd=0.3, lty = "dashed")
xt3 <- c(line,p[p>line],line)
yt3 <- c(0,x1[p>line],0)
polygon(xt3, yt3, col="grey")
legend("topright", inset=.05, c(expression(alpha), expression(beta)), fill=c("grey", "grey23"), cex=2)``````

## mercoledì 18 aprile 2007

### It's not R but It's VERY useful

On the chance that you are talking about replacing a word, say, 500 times in a large text file, you might be interested in sed.

Example (you must be in a unix environment with GNU free software):

`sed 's/old_word/new_word/g' text_file > new_text_file`

After which, new_text_file will contain the contents of text_file, except with the new_word values in place of the old_word values. For those interested in more detailed information, as usual, man (in this case man sed) is your friend.

## martedì 17 aprile 2007

### From Similarity To Distance matrix

``` # This function returns an object of class "dist" sim2dist <- function(mx) as.dist(sqrt(outer(diag(mx), diag(mx), "+") - 2*mx)) # from similarity to distance matrix d.mx = as.matrix(d.mx) d.mx = sim2dist(d.mx) # The distance matrix can be used to visualize # hierarchical clustering results as dendrograms hc = hclust(d.mx) plot(hc)```

See Multivariate Analysis (Probability and Mathematical Statistics) for the statistical theory.
